Introduction:

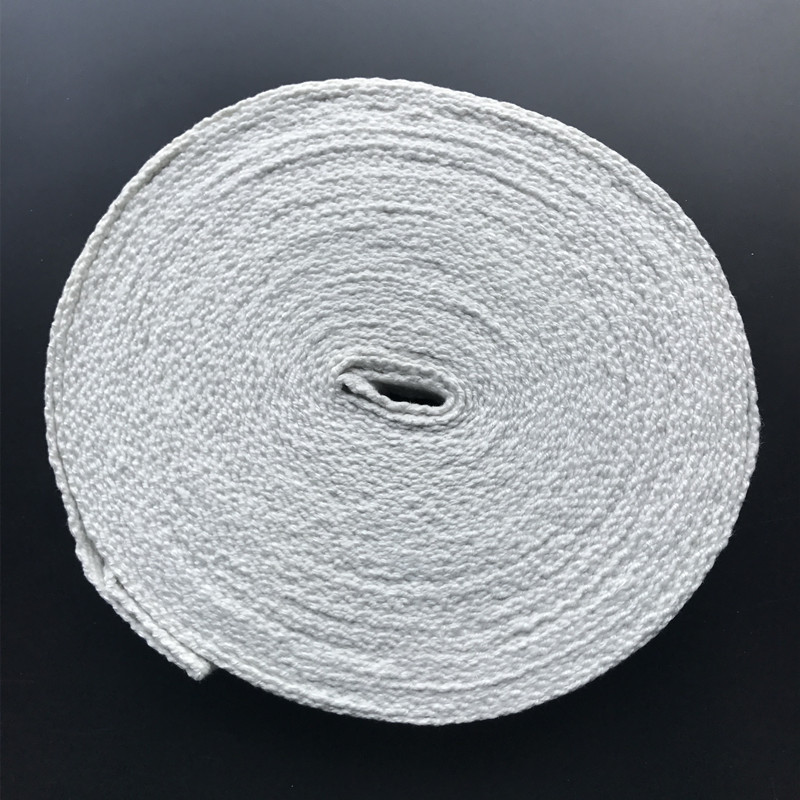

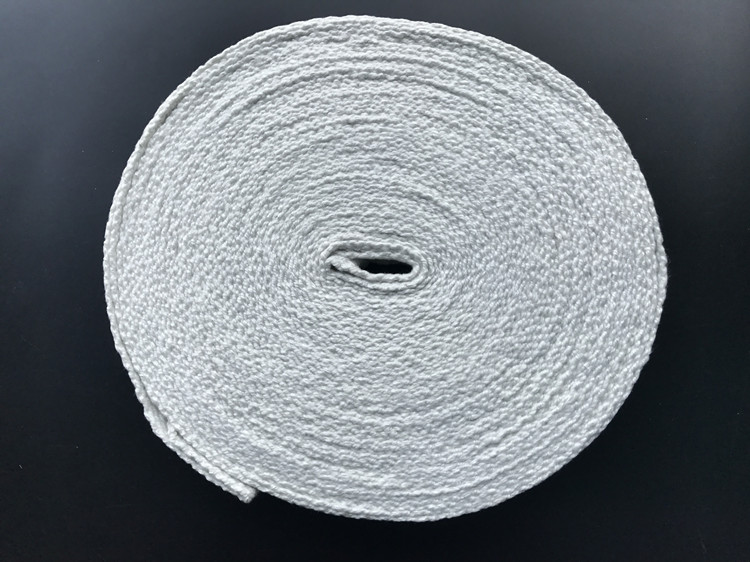

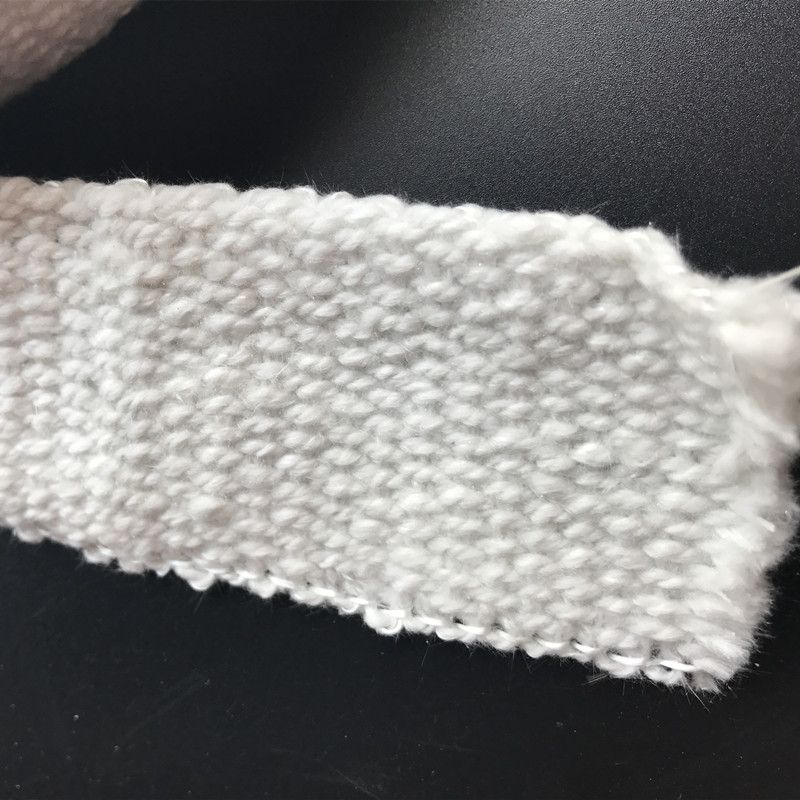

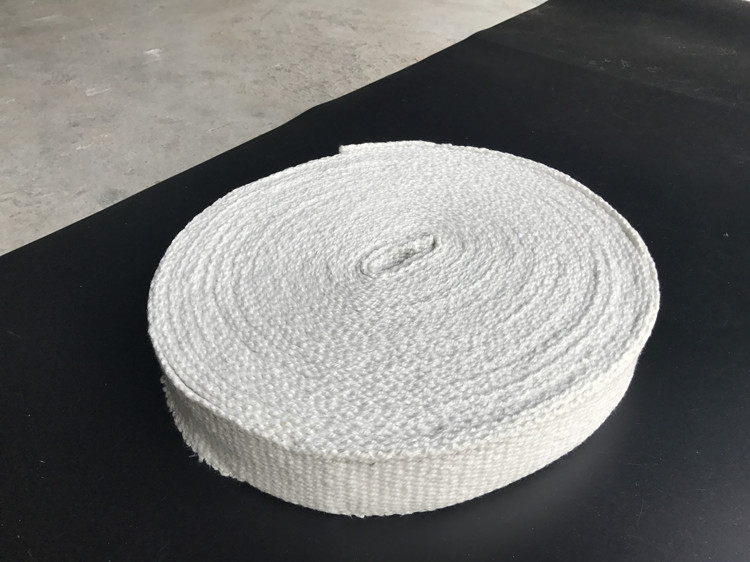

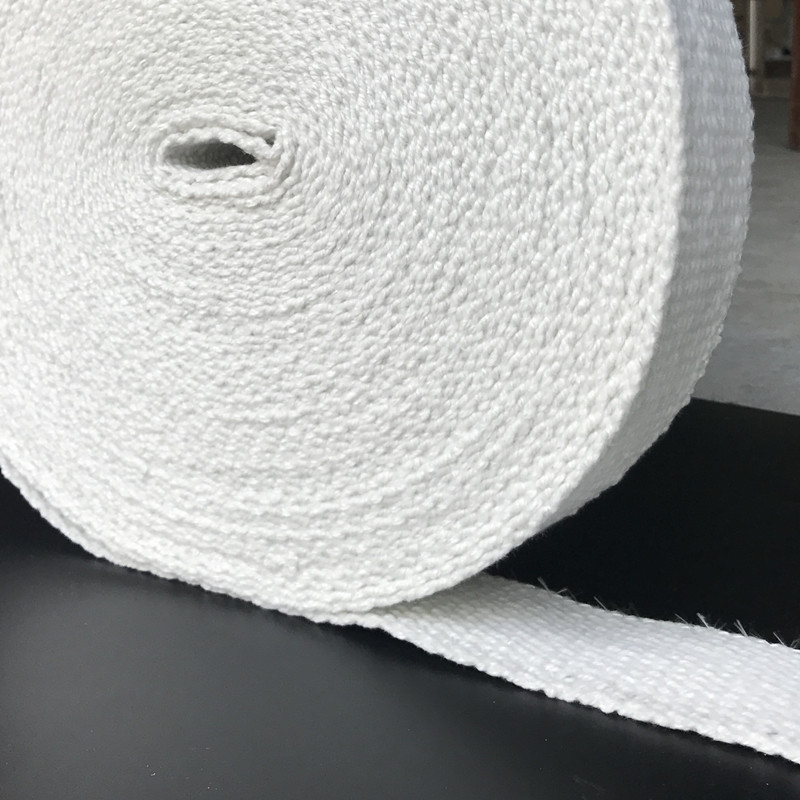

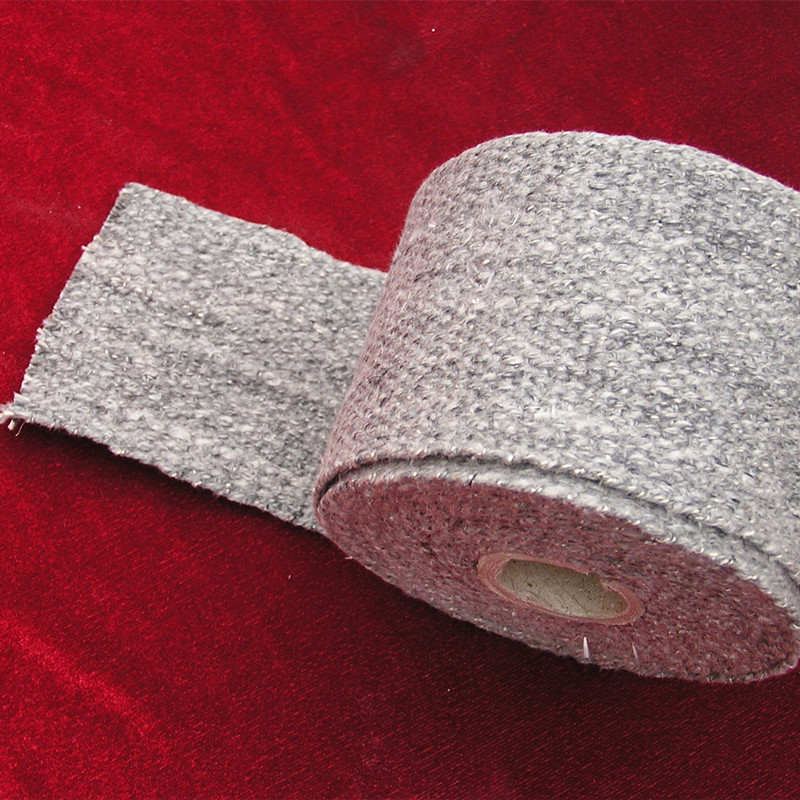

Ceramic fiber tape, also named aluminum silicate tape, Al2O3 content about 45%, is divided in to two types: glass fiber reinforced and stainless steel wire reinforced. Fire rating class A, long term use 1000℃ below.
It will prolong high temperature and heat insulation time, when ceramic fiber fabric by heat treating, or coated with vermiculite.
Application:
1.Personal safety protection and reinforced material of high mechanical performance requirements.
2.It is widely used for electric motor insulation, which is the first choice of insulating materials, to extend the service life, reduce the volume and weight.
3.Fireproof and heat insulation for engineering construction, real estate, site welding, etc.
4.Sealing and insulation for pipe, exhaust.
Characteristics:
Heat and electric insulation, acid resistance, oil and water vapor corrosion resistance, resistance of aluminum, zinc and other non-ferrous molten metal etching, good tensile strength, low thermal conductivity, non-toxic.
Specification:
Thickness: 1.5-6mm
Width: 25-1000mm
Colour | White | Gray |
Material | Aluminum silicate fiber | Aluminum silicate fiber |
Thickness | 1.5mm-6mm | 1.5mm-6mm |
Density | 500-525 | 500-525 |
Longitude | 58±2 | 58±2 |
Latitude | 29±1 | 29±1 |
AI2O3 | ≥45% | ≥45% |
Burning Out Rate(1050%) | ≤18% | ≤5% |
Thermal conductivity | 0.17-0.20W/MK（100℃） | 0.17-0.20W/MK（100℃） |
Reinforcements | Stainless Steel Wire | Stainless Steel Wire |
Maximum temperature | 1260℃ | 1260℃ |
Working Temp | 1050℃ | 1050℃ |
Melting Point | 1720℃ | 1720℃ |
Incombustible | grade B | grade A |
